PC48 UVW signal Hollow Shaft Incremental Encoders 14mm Through Hole IP50
Main Product Description

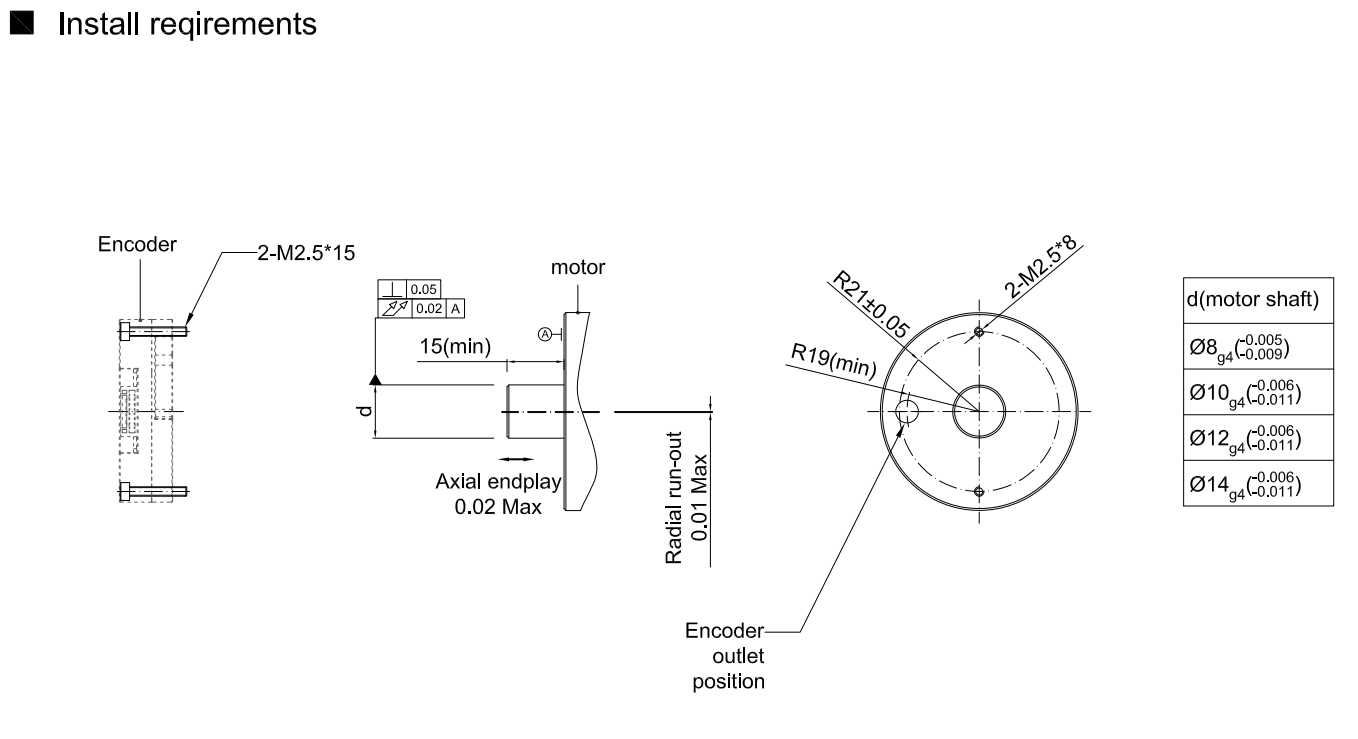

1.) PC48 Basic Characteristics
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 48mm |
| Thickness | 14mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 8mm;10mm;12mm;14mm |
| Resolution | 1024/6;/8;/16;2048/6;/8;/16;2500/6;/8;/16;4096/6;/8;16;5000/6;/8;/16;8192/6;/8;/16;10000/6;/8;/16 |
| Output phase | 3=A+B+Z, 6=A+A-+B+B-+Z+Z-. 6=Less wiring type, 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W- |
| Supply voltage | DC5V ; DC8--30V |
| Outlet type | Radial cable |
| Output mode | N=OC(DC5V&8-30V) |
| C=TTL(DC5V) |
| E=HTL(DC8-30V) |
| S=TTL(DC5V)(Less wiring type) |
| Consumption current | 120mA MAX |
| Top response frenquency | 100KHz;500KHz; 800KHz |
| GND | not connect to encoder, must be effectively connected to GND |
| Starting torque | less than 9.8 x 10-3 N.m |
| Inertia moment | less than 6.5×10-6kg.m2 |
| Environmental temperature | Operating:-20 ～+95℃；storage:-25 ～+100℃ |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Protection | IP50 |
| Material | aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 70g (with package) |
2.) Related part number for PC48 series
PC48-E3C2048/6Q10
PC48-F6E4096/6Q12C1
PC48-J3S2500/16Q14
PC48-E3E1024/8Q8C5
PC48-J12S8192/8Q14
PC48-F12X2500/6Q8C20
PC48-E12C10000/8Q10
PC48-F12-N-4096/8Q12C30
...
3.) Few Questions you may like to know before ordering
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
4.) Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
5.) Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.
6.) Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.
